Giorno virtuale v.2 per presepe

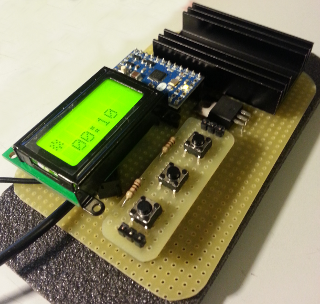

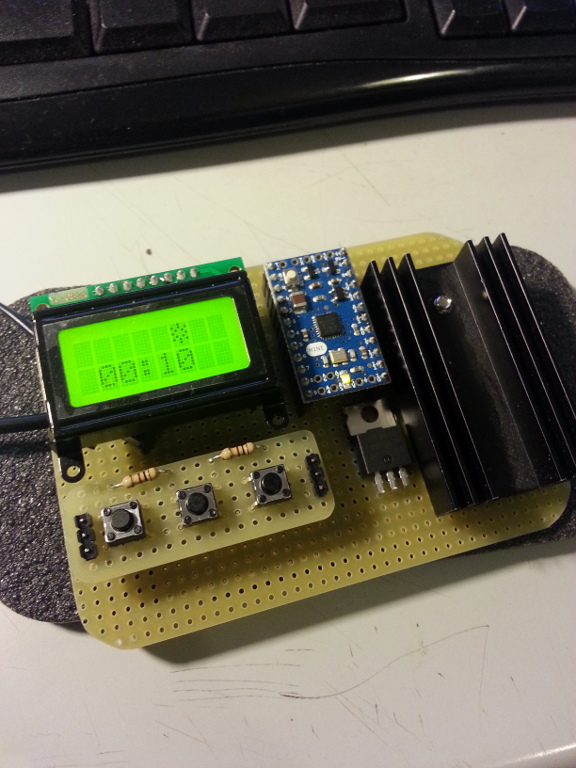

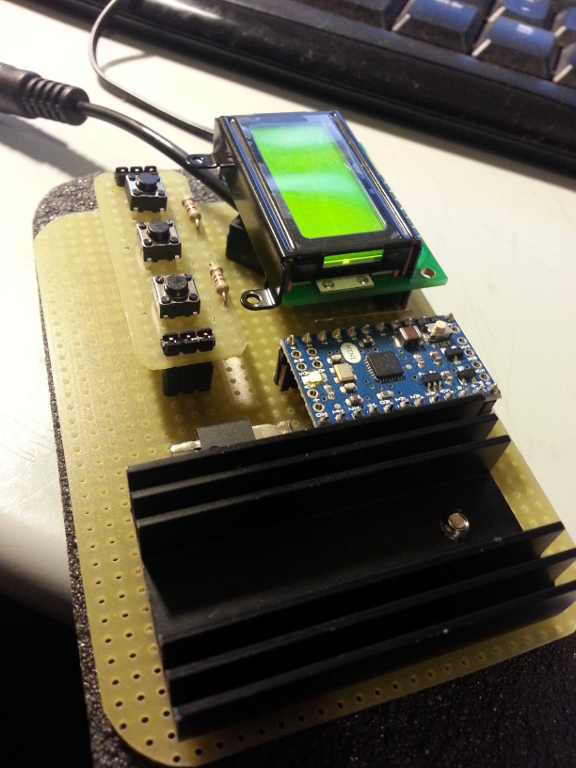

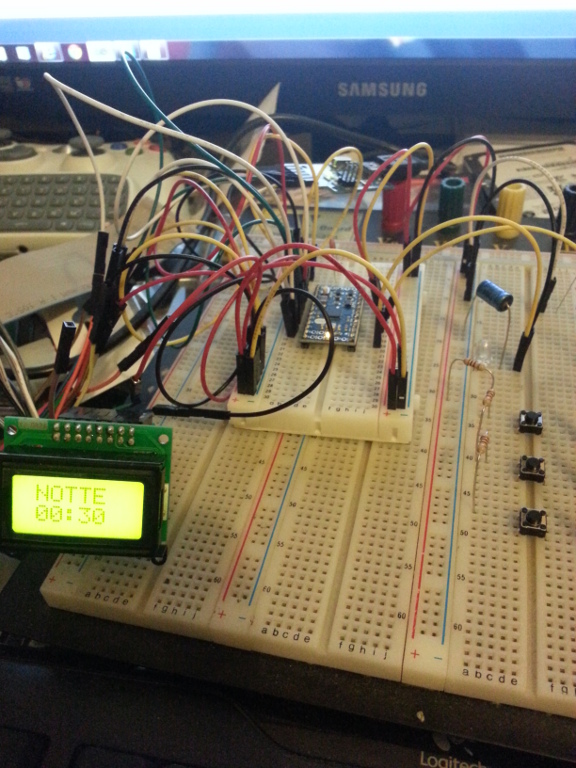

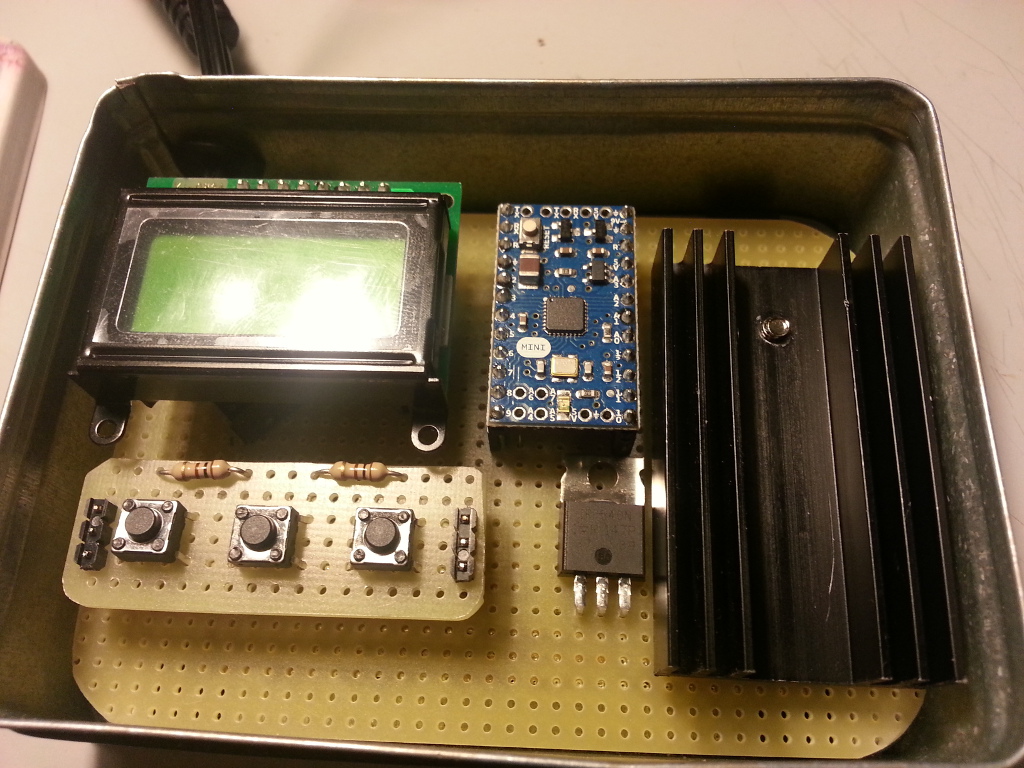

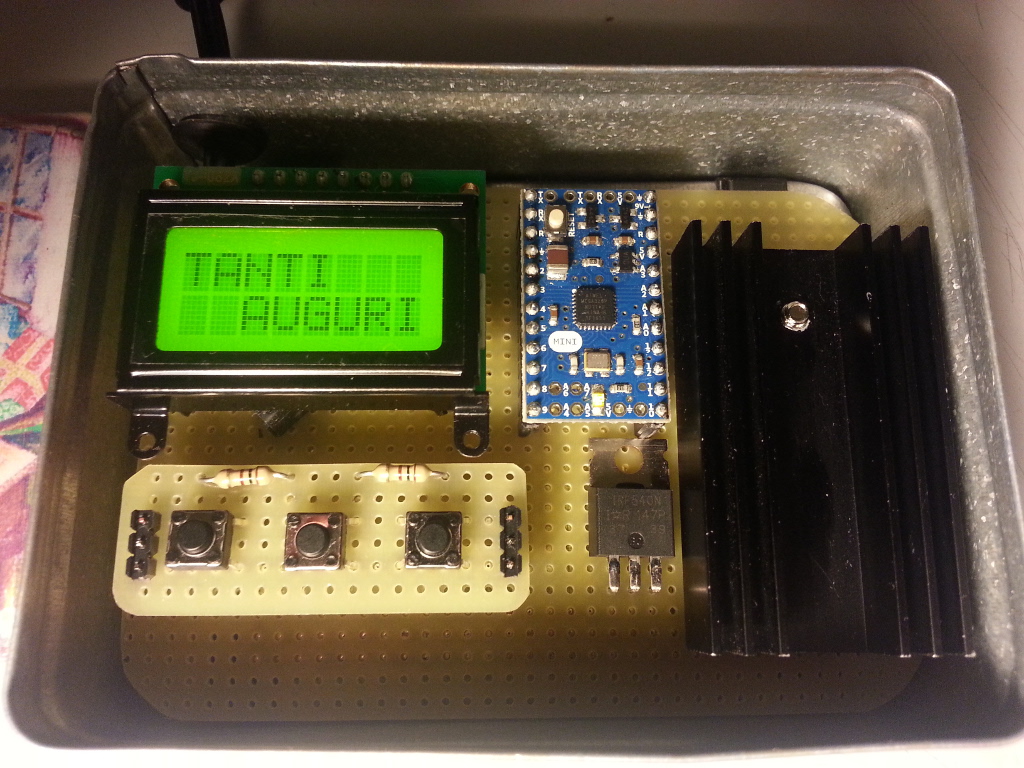

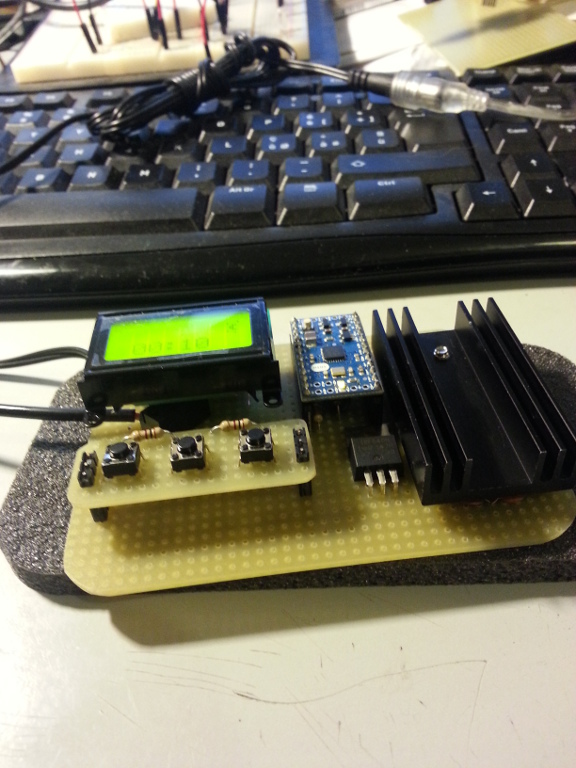

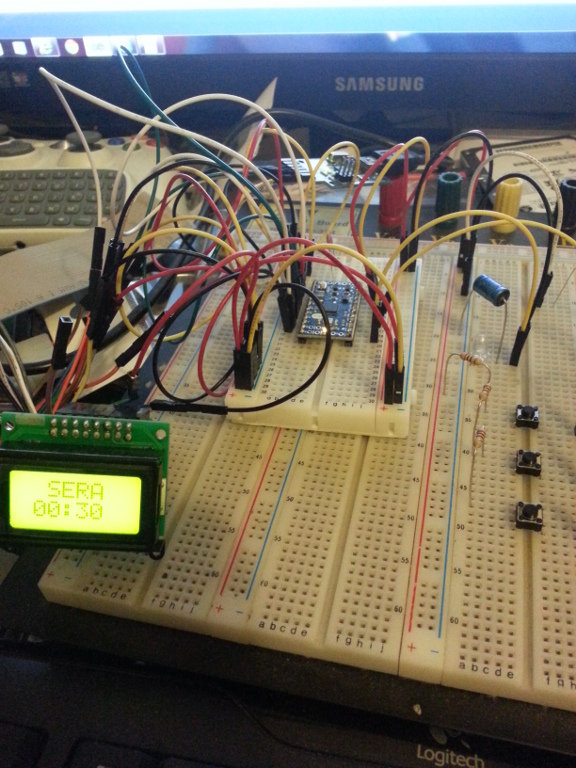

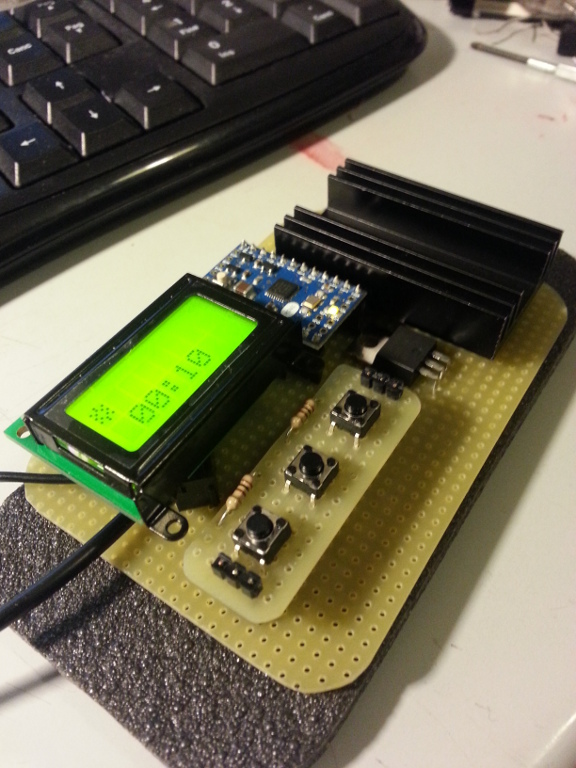

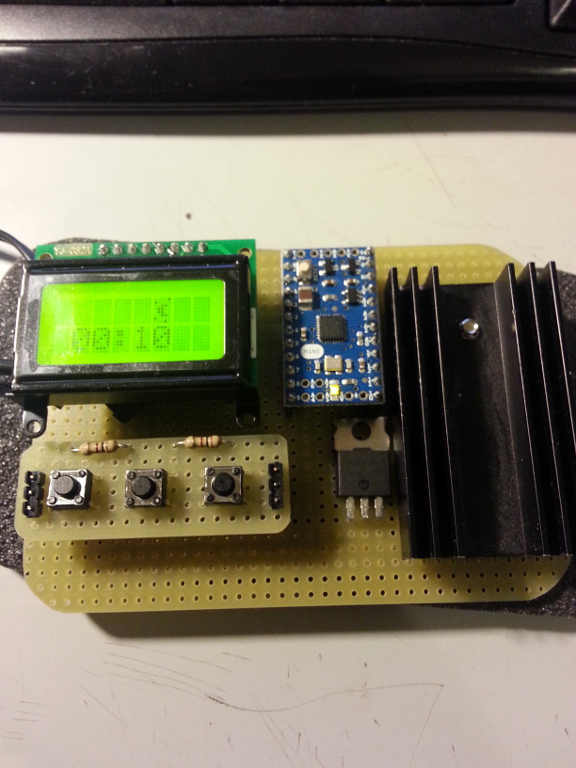

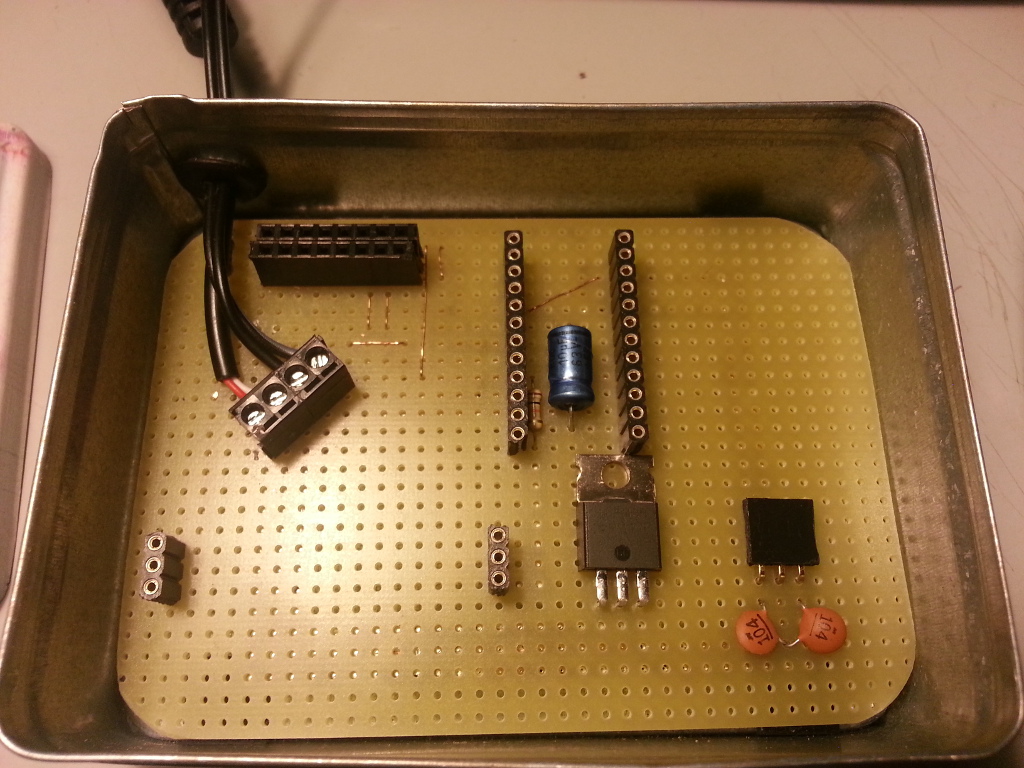

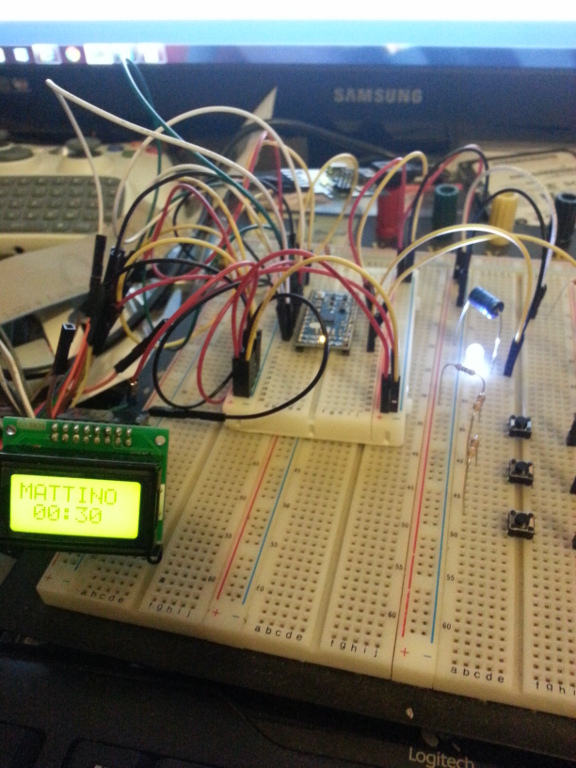

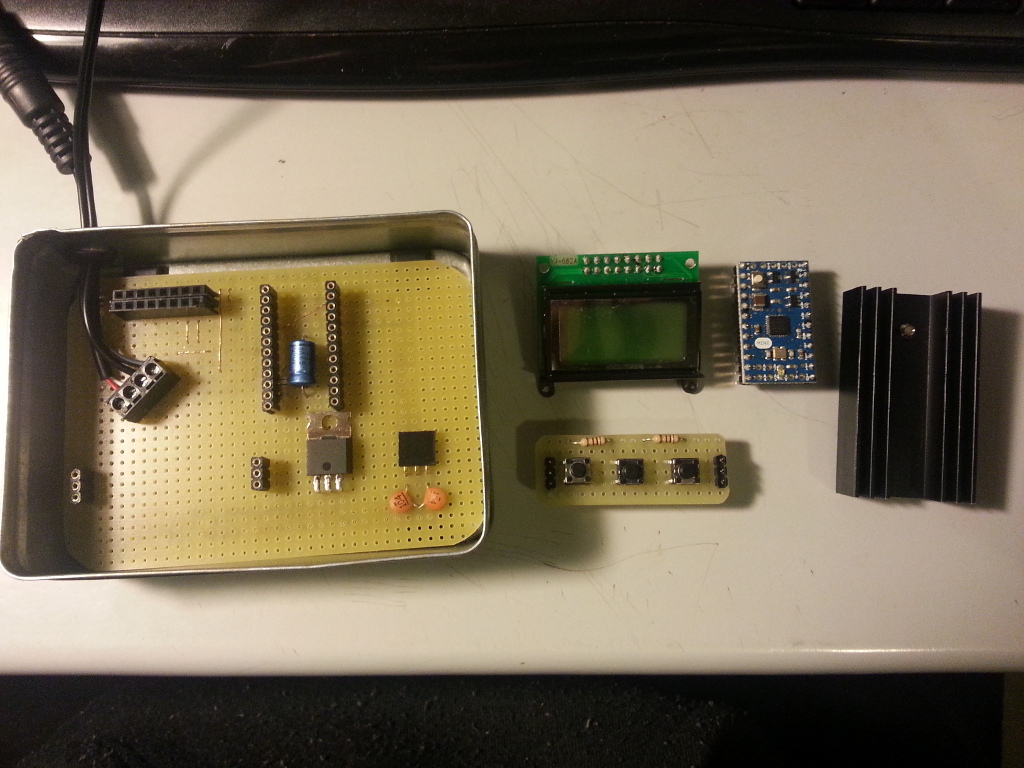

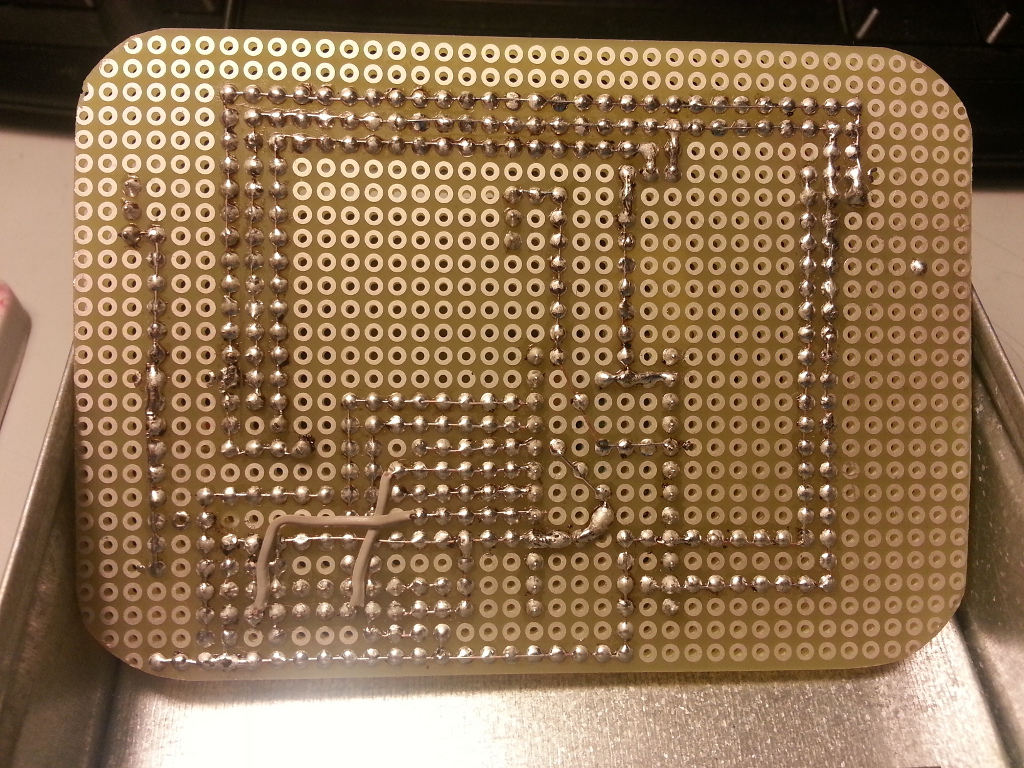

Questa è una variante del progetto Giorno virtuale, è solo stato aggiunto un display lcd 8x2..



gv01



 Sketch Arduino :

#include <TimerOne.h>
#include <LiquidCrystal.h>

//switch
#define switchPin A0

//config
#define incre 1000 // 500 centesimi = 5 sec | 6000 centesimi = 60 sec = 1 min
//incre max 16843009 centesimi massimi = 16843 sec = 280 min = 4 ore
//(duti max) * (incre max) = 4294967295 centesimi = 42949672 = sec = 715827 min = 11930 ore = 497 giorni = 16 mesi
#define timertick 20000 // 250000 = 25 centesimi = 0.25 sec
#define inccen 2 // = timertick / 10000
#define fine 3 // minimo 2
#define stagione 254 //da 1 a 255

//mosfet
#define sole 11

//LCD
#define LCD_RS 2
#define LCD_Enable 3
#define LCD_D4 7
#define LCD_D5 4
#define LCD_D6 6
#define LCD_D7 5

String LCD_R1 = "        ";
String LCD_R2 = "        ";

volatile unsigned long mise = 0; // centesimi di secondo
byte duti = 0; // da 0 a 255
boolean onof = false;
boolean btst = false;
boolean hilo = false;

long luce = 0;

LiquidCrystal lcd(LCD_RS, LCD_Enable, LCD_D4, LCD_D5, LCD_D6, LCD_D7);

void setup() {

	pinMode(switchPin, INPUT);
	pinMode(sole, OUTPUT);

	byte font[8];

	font[0] = 0b00100;
	font[1] = 0b10101;
	font[2] = 0b01010;
	font[3] = 0b10001;
	font[4] = 0b01010;
	font[5] = 0b10101;
	font[6] = 0b00100;
	font[7] = 0b00000;

	lcd.createChar(0, font);

	font[0] = 0b00001;
	font[1] = 0b10000;
	font[2] = 0b00110;
	font[3] = 0b01100;
	font[4] = 0b01100;
	font[5] = 0b00110;
	font[6] = 0b10000;
	font[7] = 0b00010;

	lcd.createChar(1, font);

	lcd.begin(8, 2);
	lcd.clear();

	Timer1.initialize(timertick);
	Timer1.attachInterrupt(Tick);

}

void Tick(){

	uint8_t img = 2;

	mise += inccen;

	if (onof == true) {
		if (duti == 0) {
			LCD_R1 = " SEMPRE ";
			LCD_R2 = " GIORNO ";
			analogWrite(sole, stagione);
		} else {
			if ((mise % (incre * (unsigned long)duti)) == 0 ) {
				hilo = !hilo;
				mise = 0;
			}

			LCD_R1 = "";
			for (int i=0; i<map(mise, 0, (incre * (unsigned long)duti), 0, 8); i++){
				LCD_R1 += " ";
			}

			if (hilo == true) {
				img = 0;
				unsigned long x = ((incre * (unsigned long)duti)/fine);

				if (mise < x) {
				    luce = map(mise, 0, x, 0, stagione); //luce = (mise * stagione) / x;
				} else if ((mise >= x) && (mise <= (x*(fine-1)))) {
					luce = stagione;
				} else if (mise > (x*(fine-1))) {
				    luce = (stagione - map(mise, (x*(fine-1)), (incre * (unsigned long)duti), 0, stagione)); //luce = (((x*fine)-mise) * stagione) / x;
				}

				analogWrite(sole, constrain(luce, 0, stagione));

			} else {
				img = 1;
				analogWrite(sole, LOW);
			}
		}

	} else {
		LCD_R1 = "TANTI   ";
		LCD_R2 = "  AUGURI";
		digitalWrite(sole, LOW);
	}

	if ((mise % (inccen * 10))  == 0) {
		lcd.clear();
		lcd.setCursor(0,0);
		lcd.print(LCD_R1);
		if (img < 2) {lcd.write(img);}
		lcd.setCursor(0,1);
		lcd.print(LCD_R2);
	}
}

void RstSta() {
	btst = true;
	mise = 0;
	hilo = true;
}

void PrtTime(){

	int secondi = (incre * duti)/100;
	int minuti = secondi / 60;

	secondi = secondi % 60;
	minuti = minuti % 60;

	if (minuti < 10) {LCD_R2 = " 0";} else {LCD_R2 = "  ";}
	LCD_R2 += minuti;
	if (secondi < 10) {LCD_R2 += ":0";} else {LCD_R2 += ":";}
	LCD_R2 += secondi;

}

void loop() {

	switch(int(analogRead(switchPin)/10)){
		case (99):
			if ((btst == false) && (onof == true)) {
				RstSta();
				duti++;
				PrtTime();
			}
		break;
		case (100):
			if (btst == false) {
				onof = !onof;
				RstSta();
				duti = 0;
			}
		break;
		case (101):
			if ((btst == false) && (onof == true)) {
				RstSta();
				duti--;
				PrtTime();
			}
		break;
		case (0):
			btst = false;
		break;
	}

}

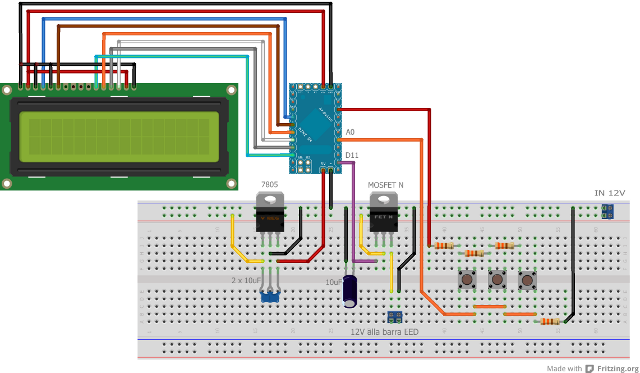

Schema elettrico :
